Sumitomo

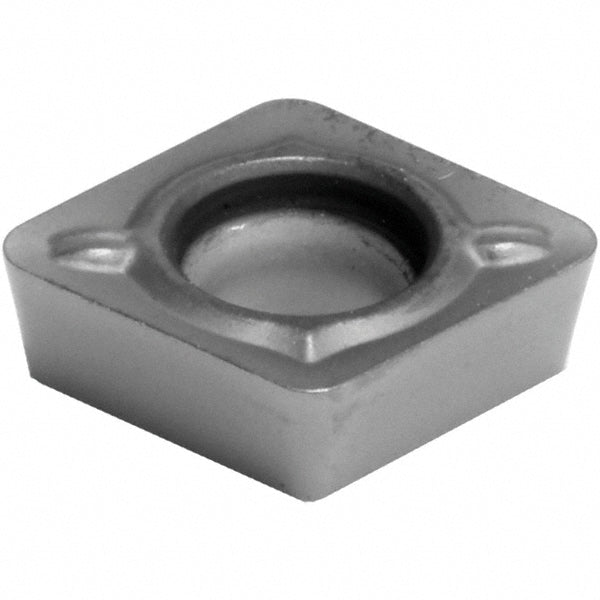

CPMT09T308N-SU Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 19T5W40
MFR# 19T5W40ISO/ANSI# CPMT09T308N-SUCat# CPMT32.52ESU-AC5015SSeries AC5000S
$11.85List $14.93
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T5W40 is a CPMT09T308N-SU carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Ansi size code32.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCPMT
Insert thickness0.1563
Iso codeCPMT09T308N-SU
Iso size code09T308
Manufacturers catalog numberCPMT32.52ESU-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakePositive
Rake angle20
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
