Sumitomo

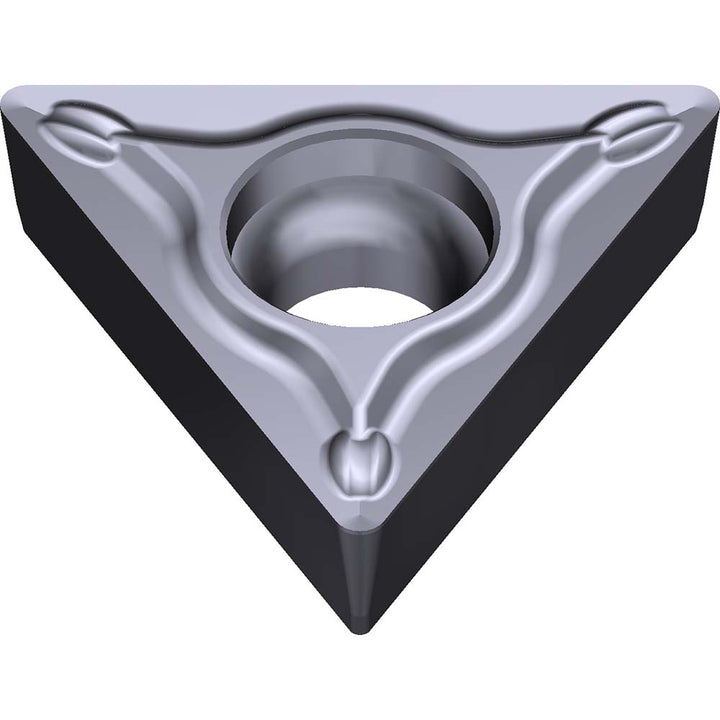

TPMT110204N-SU Carbide Insert, Grade AC5015S, Absotech Bronze - Sumitomo 19T5WKU
MFR# 19T5WKUISO/ANSI# TPMT110204N-SUCat# TPMT21.51ESU-AC5015SSeries AC5000S
$9.72List $12.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeAC5015S
MaterialCarbide
CoatingAbsotech Bronze
Description
The Sumitomo 19T5WKU is a TPMT110204N-SU carbide indexable insert, grade AC5015S, Absotech Bronze coated. Suited for non-ferrous metal, superalloy.
Specifications
Chip breakerESU
Clearance codeP
Coating finishAbsotech Bronze
Coating processPVD
Corner radius0.0157
Hole diameter0.1102
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code21.5
Insert styleTPMT
Insert thickness0.0937
Iso codeTPMT110204N-SU
Length range0.4000 - 0.5000
Manufacturers catalog numberTPMT21.51ESU-AC5015S
Manufacturer gradeAC5015S
Primary workpiece materialNon-Ferrous Metal; Superalloy
RakePositive
Relief angle11
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
