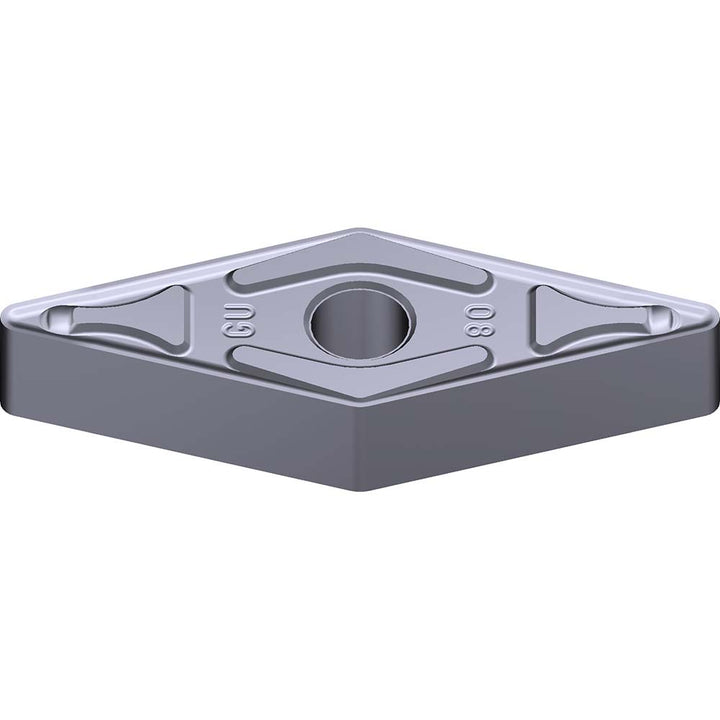

VNMG160404N-GU Carbide Insert, Grade AC5025S, Absotech Bronze - Sumitomo 19T6158
MFR# 19T6158ISO/ANSI# VNMG160404N-GUCat# VNMG331EGU-AC5025SSeries AC5000S
$16.32List $20.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingAbsotech Bronze
Description
The Sumitomo 19T6158 is a VNMG160404N-GU carbide indexable insert, grade AC5025S, Absotech Bronze coated. Suited for superalloy.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishAbsotech Bronze
Coating processPVD
Corner radius0.0157
Hole diameter3.8100
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404N-GU
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMG331EGU-AC5025S
Manufacturer gradeAC5025S
Primary workpiece materialSuperalloy
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeM
