Sumitomo

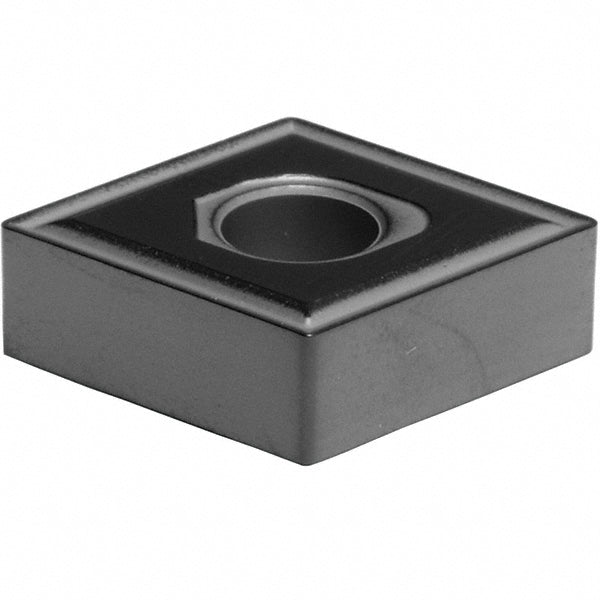

CNMG120404N-EX Solid Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6164
MFR# 19T6164ISO/ANSI# CNMG120404N-EXCat# CNMG431EEXAC5025SSeries AC5000S
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5025S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T6164 is a CNMG120404N-EX solid carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Ansi codeCNMG431EEX
Chip breakerEEX
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Cutting directionNeutral
Full radiusNo
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404N-EX
Manufacturers catalog numberCNMG431EEXAC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle16
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
