Sumitomo

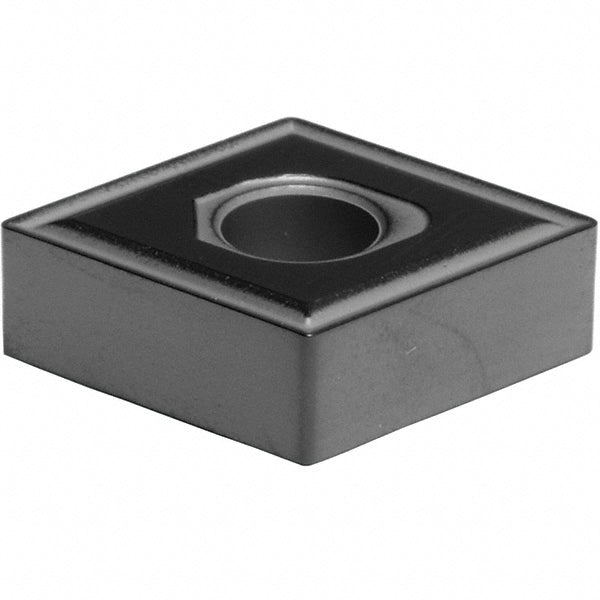

CNMG120408N-EX Solid Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6165
MFR# 19T6165ISO/ANSI# CNMG120408N-EXCat# CNMG432EEXAC5025SSeries AC5000S
$13.75List $17.33
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5025S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T6165 is a CNMG120408N-EX solid carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Ansi codeCNMG432EEX
Chip breakerEEX
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Cutting directionNeutral
Full radiusNo
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-EX
Manufacturers catalog numberCNMG432EEXAC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle16
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
