Sumitomo

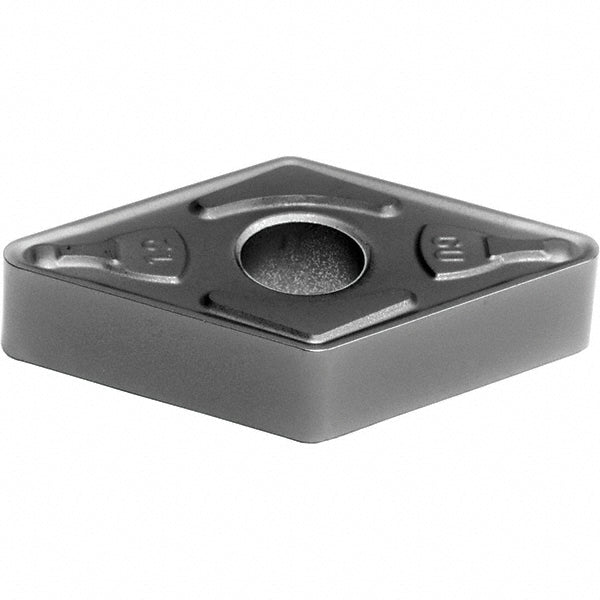

DNMG150408N-GU Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6339
MFR# 19T6339ISO/ANSI# DNMG150408N-GUCat# DNMG432EGU-AC5025SSeries AC5000S
$16.84List $21.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T6339 is a DNMG150408N-GU carbide indexable insert, grade AC5025S, TiAlSiN coated.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408N-GU
Manufacturers catalog numberDNMG432EGU-AC5025S
Manufacturer gradeAC5025S
Material gradeS20
RakeNegative
Rake angle7
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
StandardsANSI; ISO 13399
Tolerance codeM
