Sumitomo

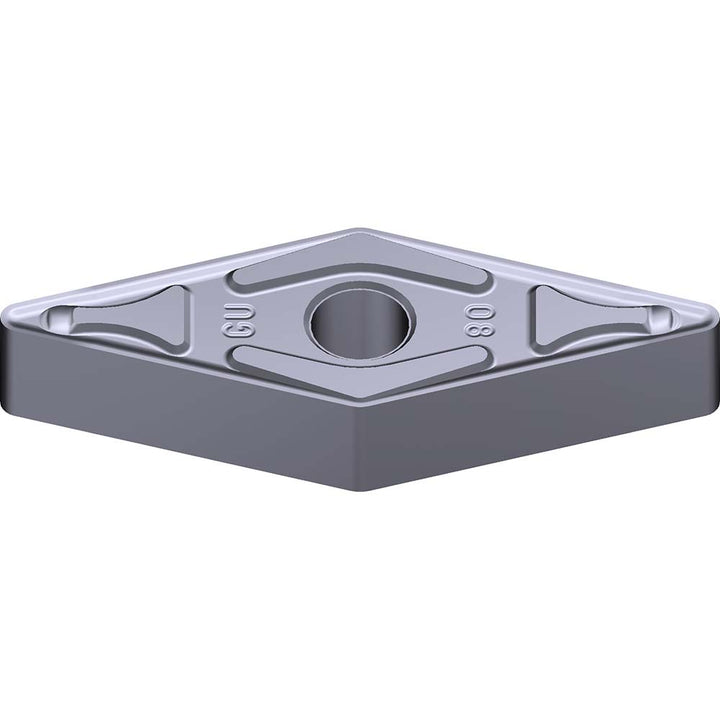

VNMG160408N-GU Carbide Insert, Grade AC5025S, Absotech Bronze - Sumitomo 19T6342
MFR# 19T6342ISO/ANSI# VNMG160408Cat# VNMG332EGU-AC5025SSeries AC5000S
$17.46List $22.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC5025S
MaterialCarbide
CoatingAbsotech Bronze
Description
The Sumitomo 19T6342 is a VNMG160408N-GU carbide indexable insert, grade AC5025S, Absotech Bronze coated. Suited for superalloy.
Specifications
Ansi insert codeVNMG332
Ansi size code332
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishAbsotech Bronze
Coating processPVD
Corner radius0.0315
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter3.8100
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-GU
Iso insert codeVNMG160408
Iso size code160408
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMG332EGU-AC5025S
Manufacturer gradeAC5025S
Primary workpiece materialSuperalloy
RakeNegative
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
