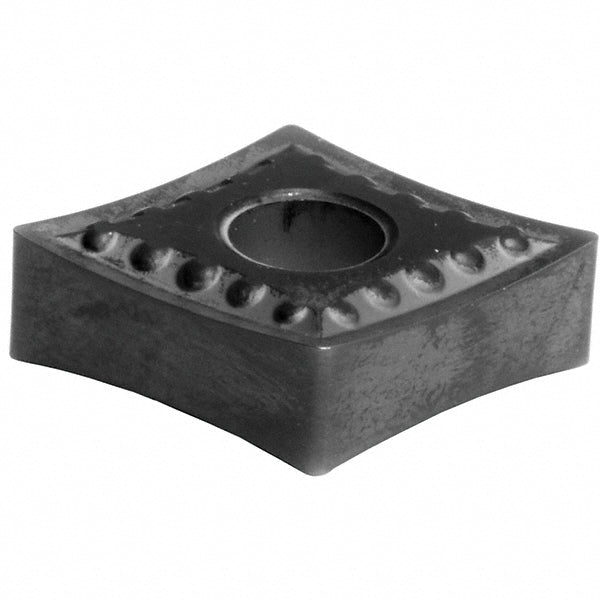

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6360

Sumitomo

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6360

MFR# 19T6360ISO/ANSI# CNMG120408Cat# CNMG432EUPAC5025SSeries AC5000S

$11.96List $15.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN

Description

The Sumitomo 19T6360 is a carbide indexable insert, grade AC5025S, TiAlSiN coated.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerEUP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Manufacturers catalog numberCNMG432EUPAC5025S
Manufacturer gradeAC5025S
Material gradeS20
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
Tolerance codeM
