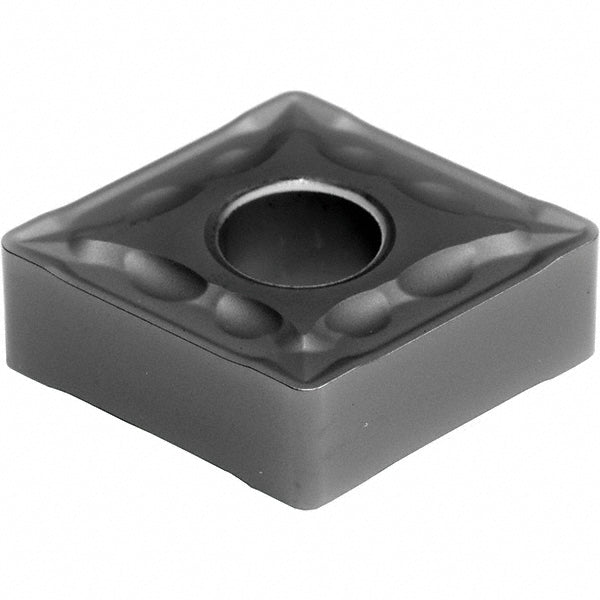

CNMG120416N-MU Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6AFK
MFR# 19T6AFKISO/ANSI# CNMG120416N-MUCat# CNMG434EMUAC5025SSeries AC5000S
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T6AFK is a CNMG120416N-MU carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Chip breakerEMU
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/16
Full radiusNo
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120416N-MU
Manufacturers catalog numberCNMG434EMUAC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle4
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
