Sumitomo

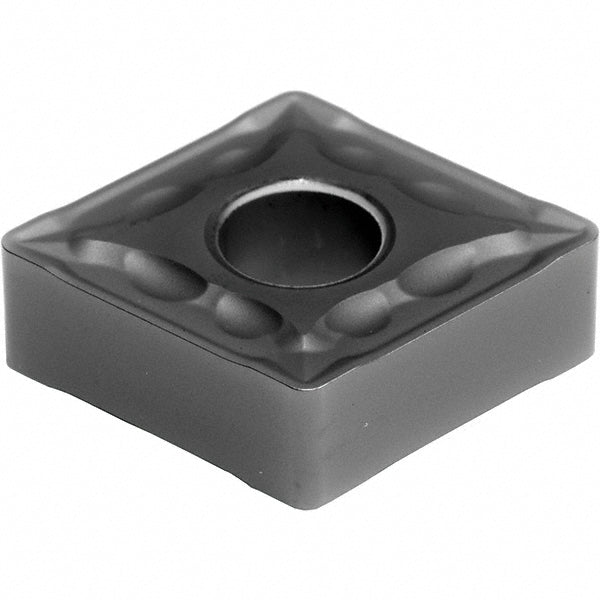

CNMG190612N-MU Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6AFN
MFR# 19T6AFNISO/ANSI# CNMG190612N-MUCat# CNMG643EMUAC5025SSeries AC5000S
$26.30List $33.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T6AFN is a CNMG190612N-MU carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Chip breakerEMU
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0469
Full radiusNo
Hole diameter0.3126
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodScrew
Insert length0.7598
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612N-MU
Manufacturers catalog numberCNMG643EMUAC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle4
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
