Sumitomo

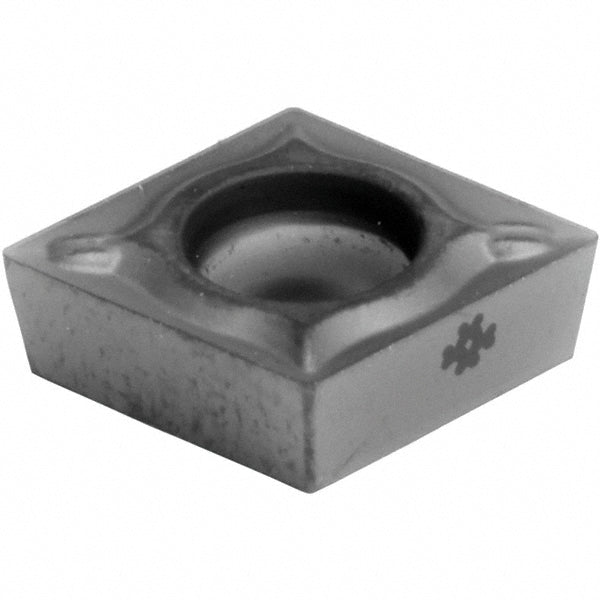

CCMT09T304N-SU Solid Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6BPE
MFR# 19T6BPEISO/ANSI# CCMT09T304N-SUCat# CCMT32.51ESUAC5025SSeries AC5000S
$10.29List $13.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5025S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T6BPE is a CCMT09T304N-SU solid carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Ansi codeCCMT32.51ESU
Chip breakerESU
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Cutting directionNeutral
Full radiusNo
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.5
Insert styleCCMT
Iso codeCCMT09T304N-SU
Manufacturers catalog numberCCMT32.51ESUAC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakePositive
Rake angle8
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
