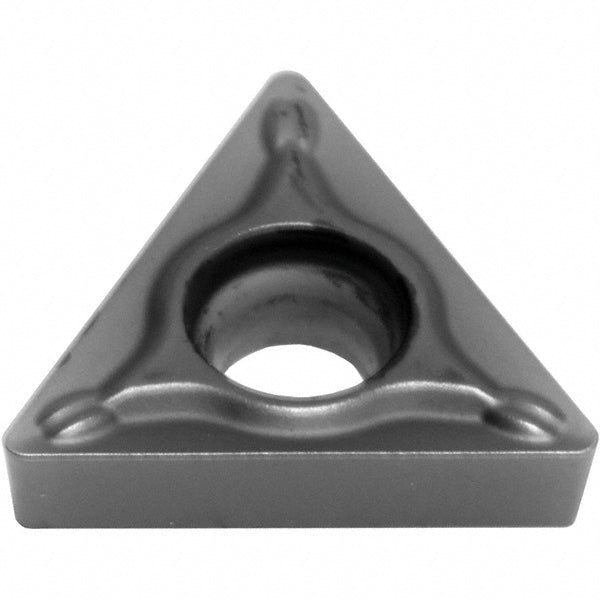

TCMT16T304N-SU Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6BPT
MFR# 19T6BPTISO/ANSI# TCMT16T304N-SUCat# TCMT32.51ESUAC5025SSeries AC5000S
$13.01List $16.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T6BPT is a TCMT16T304N-SU carbide indexable insert, grade AC5025S, TiAlSiN coated.
Specifications
Chip breakerESU
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Full radiusNo
Hole diameter0.1693
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code32.51
Insert styleTCMT
Insert thickness0.1563
Iso codeTCMT16T304N-SU
Manufacturers catalog numberTCMT32.51ESUAC5025S
Manufacturer gradeAC5025S
Material gradeS20
RakePositive
Rake angle8
Relief angle7
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeM
