Sumitomo

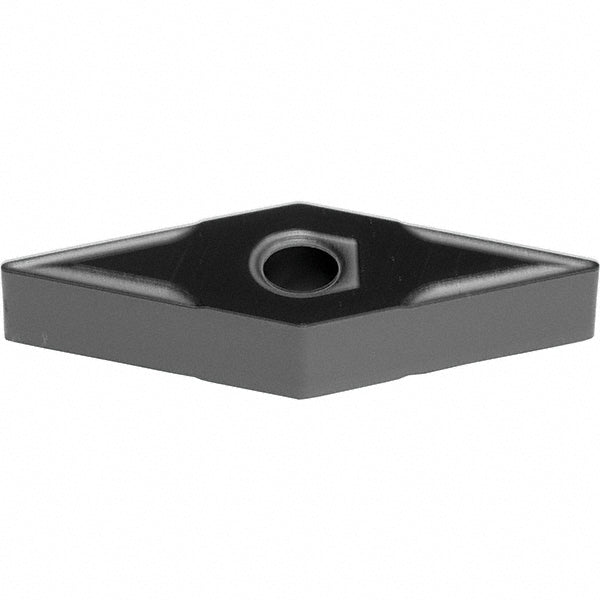

VNMG160408N-EX Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6BRN
MFR# 19T6BRNISO/ANSI# VNMG160408N-EXCat# VNMG332EEX-AC5025SSeries AC5000S
$17.46List $22.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T6BRN is a VNMG160408N-EX carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Chip breakerEEX
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408N-EX
Manufacturers catalog numberVNMG332EEX-AC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle16
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
