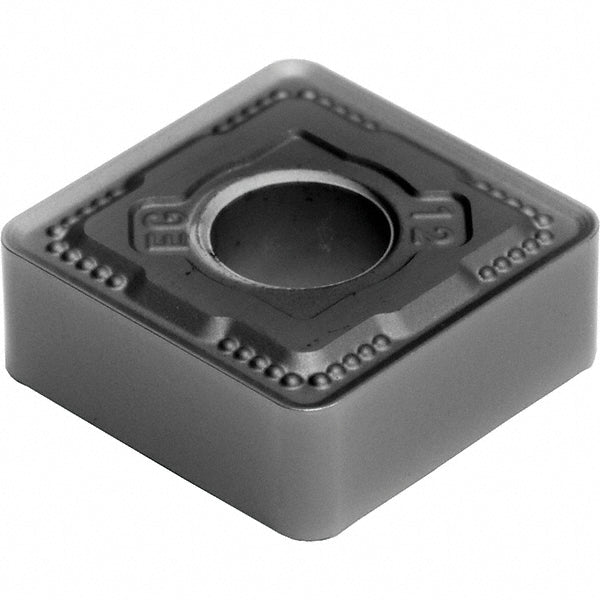

SNMG120412N-EG Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6CGG
MFR# 19T6CGGISO/ANSI# SNMG120412Cat# SNMG433EEG-AC5025SSeries AC5000S
$12.74List $16.06
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T6CGG is a SNMG120412N-EG carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Ansi insert codeSNMG433
Ansi size code433
Chip breakerEEG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0469
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle90
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412N-EG
Iso insert codeSNMG120412
Iso size code120412
Manufacturers catalog numberSNMG433EEG-AC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
Width in1/2
