Sumitomo

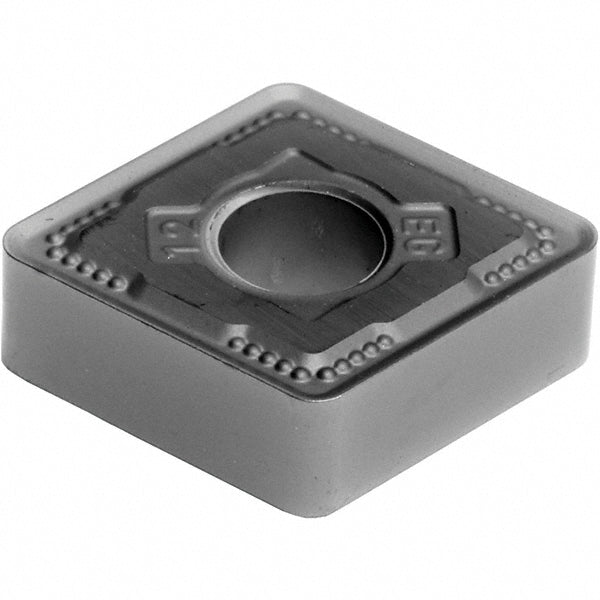

CNMG190612N-EG Solid Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6CHV
MFR# 19T6CHVISO/ANSI# CNMG190612N-EGCat# CNMG643EEG-AC5025SSeries AC5000S
$26.30List $33.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAC5025S
MaterialSolid Carbide
CoatingTiAlSiN
Description
The Sumitomo 19T6CHV is a CNMG190612N-EG solid carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Ansi codeCNMG643EEG
Chip breakerEEG
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0469
Cutting directionNeutral
Full radiusNo
Hole diameter0.3126
Included angle80.0
Inscribed circle in3/4
Insert handNeutral
Insert holding methodScrew
Insert length0.7598
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612N-EG
Manufacturers catalog numberCNMG643EEG-AC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
