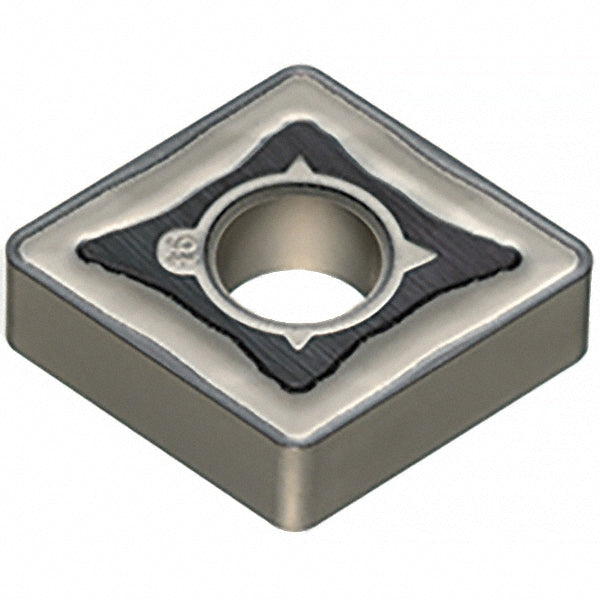

CNMG120408N-EM Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6CNB

Sumitomo

CNMG120408N-EM Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6CNB

MFR# 19T6CNBISO/ANSI# CNMG120408Cat# CNMG432EEM-AC5025SSeries AC5000S

$11.96List $15.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN

Description

The Sumitomo 19T6CNB is a CNMG120408N-EM carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerEEM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408N-EM
Iso insert codeCNMG120408
Iso size code120408
Manufacturers catalog numberCNMG432EEM-AC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
