Sumitomo

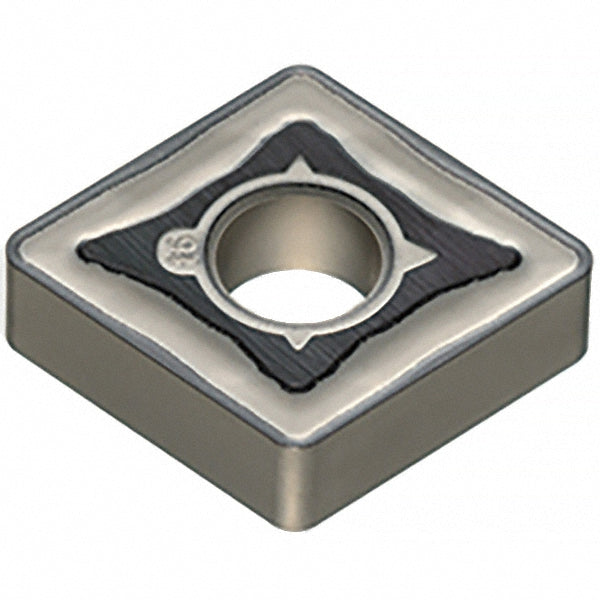

CNMG120412N-EM Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6CNC
MFR# 19T6CNCISO/ANSI# CNMG120412N-EMCat# CNMG433EEM-AC5025SSeries AC5000S
$11.38List $14.34
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T6CNC is a CNMG120412N-EM carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Chip breakerEEM
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0469
Full radiusNo
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412N-EM
Manufacturers catalog numberCNMG433EEM-AC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
