Sumitomo

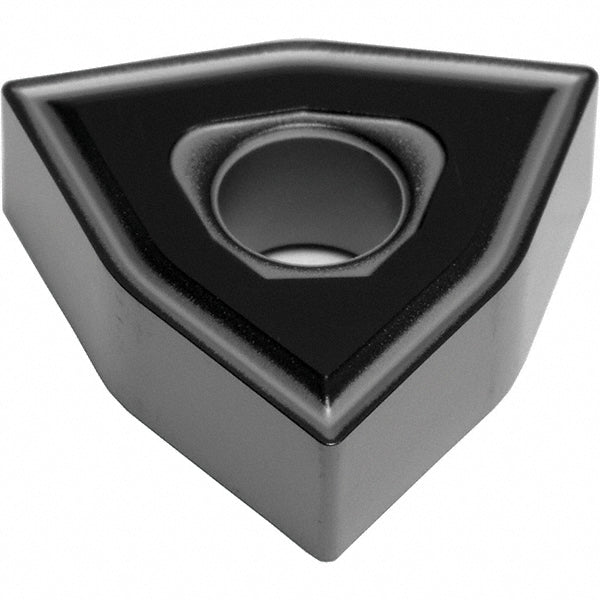

WNMG060408N-EX Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 19T6WFE
MFR# 19T6WFEISO/ANSI# WNMG060408N-EXCat# WNMG332EEX-AC5025SSeries AC5000S
$10.55List $13.53
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 19T6WFE is a WNMG060408N-EX carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Chip breakerEEX
Clearance codeN
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0313
Full radiusNo
Hole diameter0.1500
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialCarbide
Insert shapeTrigon
Insert size code332
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060408N-EX
Manufacturers catalog numberWNMG332EEX-AC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakeNegative
Rake angle16
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
