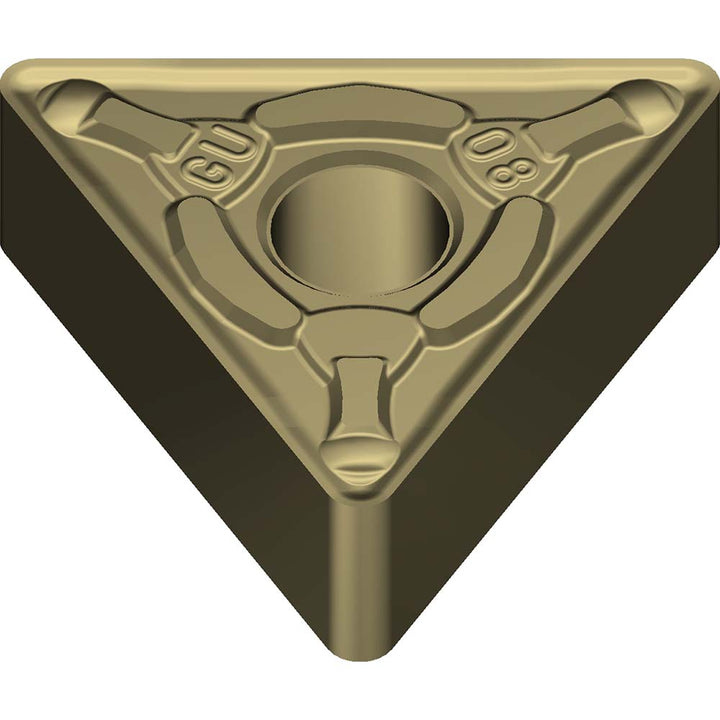

TNMG220408N-GU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1272

Sumitomo

TNMG220408N-GU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1272

MFR# 19W1272ISO/ANSI# TNMG220408Cat# TNMG432EGU-AC8020PSeries AC8020P

$14.57List $18.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeAC8020P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19W1272 is a TNMG220408N-GU carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerEGU
Chip breaker operationLight Machining; Medium Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness0.1874
Iso codeTNMG220408N-GU
Iso insert codeTNMG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog numberTNMG432EGU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
