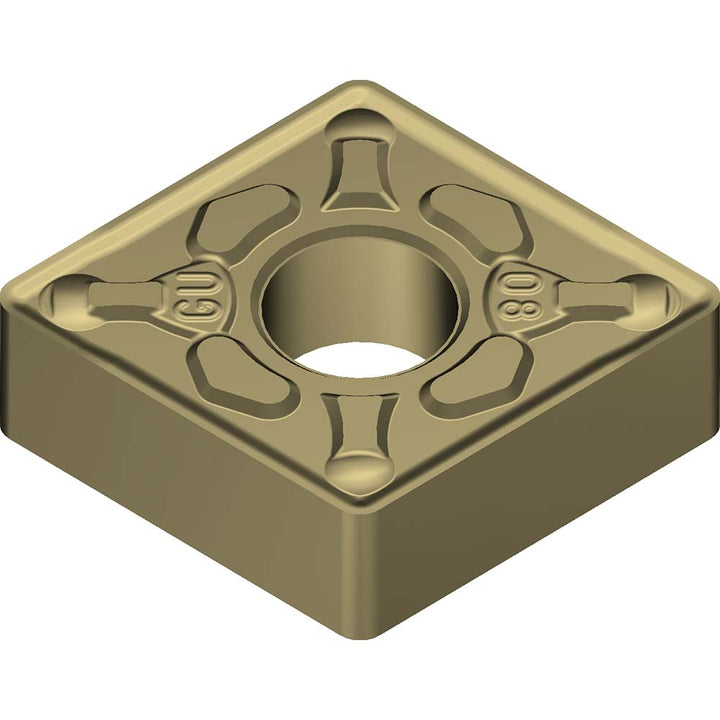

CNMG120408N-GU Solid Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1335
MFR# 19W1335ISO/ANSI# CNMG120408N-GUCat# CNMG432EGU-AC8020PSeries AC8020P
$13.16List $16.58
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 10 — minimum order 10
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC8020P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19W1335 is a CNMG120408N-GU solid carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert size code432
Insert styleCNMG
Insert thickness0.1874
Iso codeCNMG120408N-GU
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG432EGU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Tolerance codeM
