Sumitomo

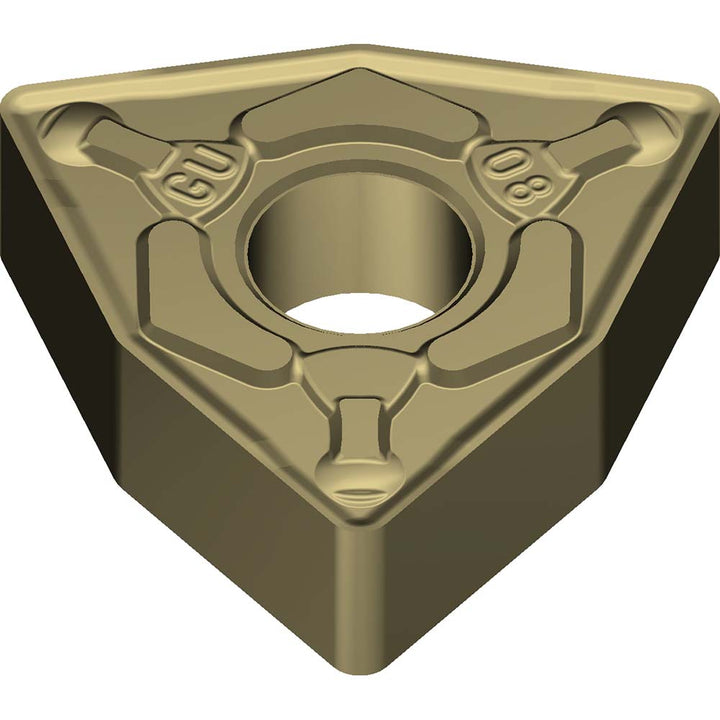

WNMG080408N-GU Solid Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1337
MFR# 19W1337ISO/ANSI# WNMG080408N-GUCat# WNMG432EGU-AC8020PSeries AC8020P
$12.93List $16.58
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC8020P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19W1337 is a WNMG080408N-GU solid carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.
Specifications
Chip breakerEGU
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.3425
Insert materialSolid Carbide
Insert size code432
Insert styleWNMG
Insert thickness0.1874
Iso codeWNMG080408N-GU
Length range0.3000 - 0.4000
Manufacturers catalog numberWNMG432EGU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Tolerance codeM
