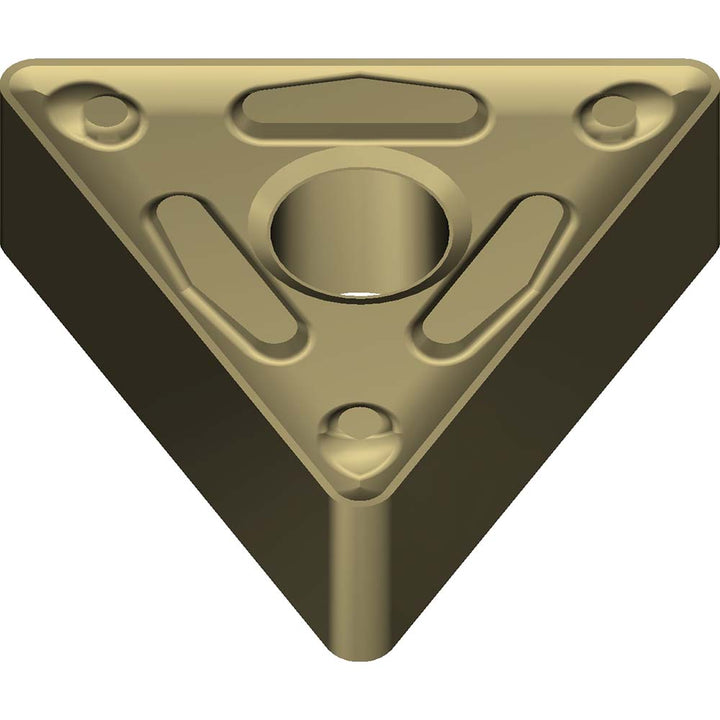

TNMG270608N-UG Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1834

Sumitomo

TNMG270608N-UG Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1834

MFR# 19W1834ISO/ANSI# TNMG270608Cat# TNMG542ENG-AC8020PSeries AC8020P

$24.14List $30.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeAC8020P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19W1834 is a TNMG270608N-UG carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeTNMG542
Ansi size code542
Chip breakerENG
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length1.0827
Insert materialCarbide
Insert shapeT - Triangle
Insert size code542
Insert styleTNMG
Insert thickness0.3126
Iso codeTNMG270608N-UG
Iso insert codeTNMG270608
Iso size code270608
Length range0.7000 - 10.0000
Manufacturers catalog numberTNMG542ENG-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
