Sumitomo

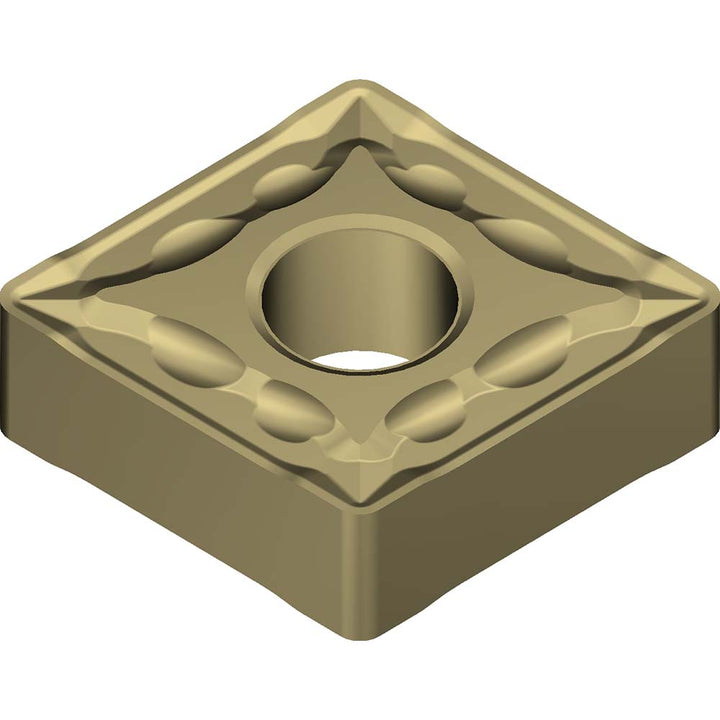

CNMG120408N-MU Solid Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1AFI
MFR# 19W1AFIISO/ANSI# CNMG120408N-MUCat# CNMG432EMU-AC8020PSeries AC8020P
$14.87List $18.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC8020P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19W1AFI is a CNMG120408N-MU solid carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.
Specifications
Chip breakerEMU
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert size code432
Insert styleCNMG
Insert thickness0.1874
Iso codeCNMG120408N-MU
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG432EMU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Tolerance codeM
