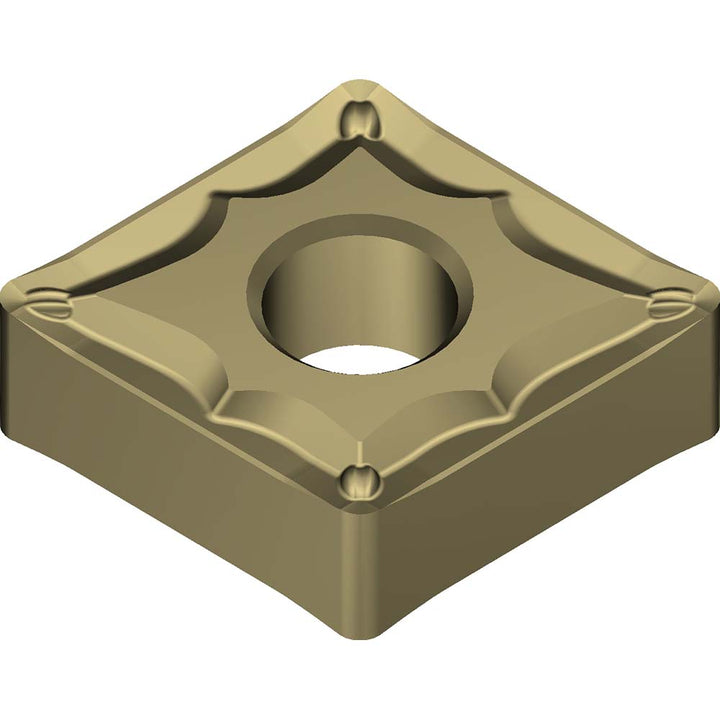

CNMG120408N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1APA

Sumitomo

CNMG120408N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1APA

MFR# 19W1APAISO/ANSI# CNMG120408Cat# CNMG432ESU-AC8020PSeries AC8020P

$12.09List $15.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8020P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19W1APA is a CNMG120408N-SU carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness0.1874
Iso codeCNMG120408N-SU
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG432ESU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
