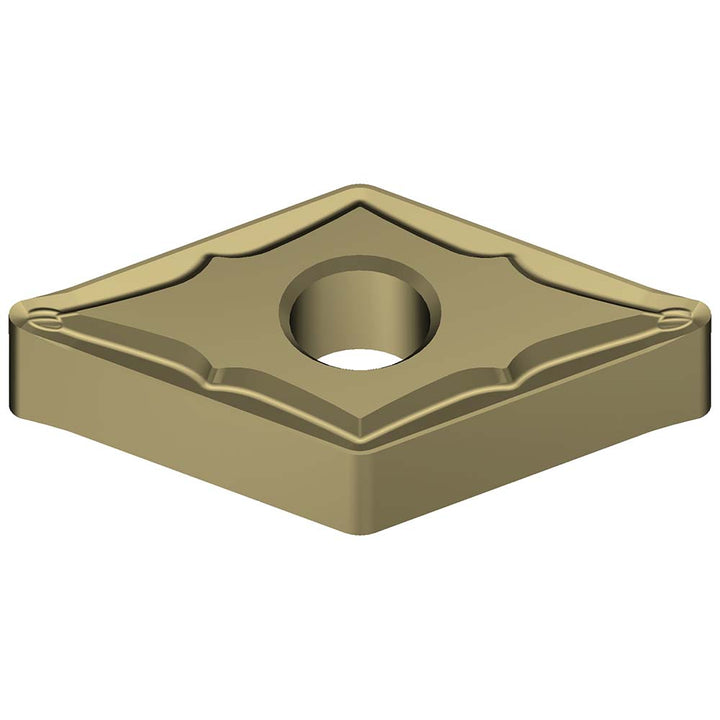

DNMG150408N-SU Solid Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1APL
MFR# 19W1APLISO/ANSI# DNMG150408N-SUCat# DNMG432ESU-AC8020PSeries AC8020P
$18.75List $24.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC8020P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19W1APL is a DNMG150408N-SU solid carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialSolid Carbide
Insert size code432
Insert styleDNMG
Insert thickness0.1874
Iso codeDNMG150408N-SU
Length range0.6000 - 0.6500
Manufacturers catalog numberDNMG432ESU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Tolerance codeM
