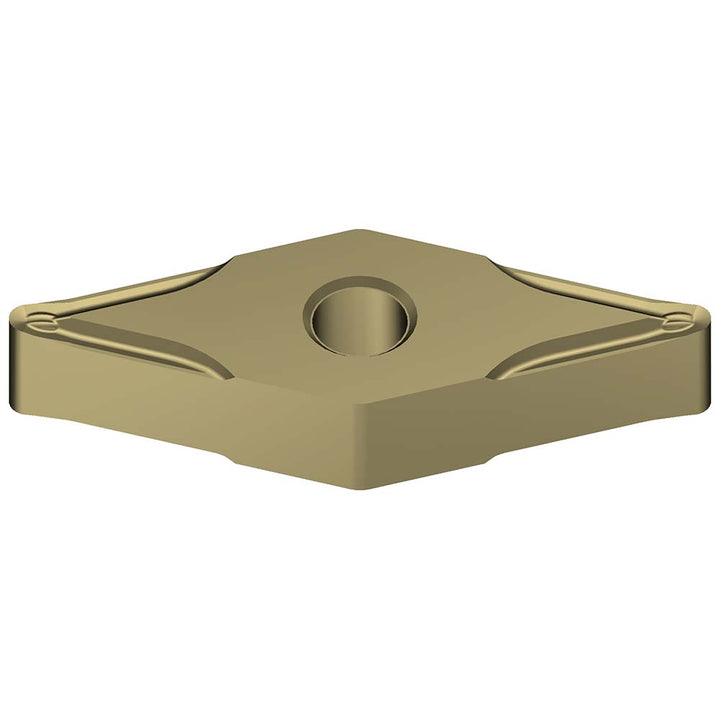

VNMG160404N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1APR

Sumitomo

VNMG160404N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1APR

MFR# 19W1APRISO/ANSI# VNMG160404Cat# VNMG331ESU-AC8020PSeries AC8020P

$19.37List $24.84 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC8020P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19W1APR is a VNMG160404N-SU carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeVNMG331
Ansi size code331
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness0.1874
Iso codeVNMG160404N-SU
Iso insert codeVNMG160404
Iso size code160404
Length range0.6500 - 0.7000
Manufacturers catalog numberVNMG331ESU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
