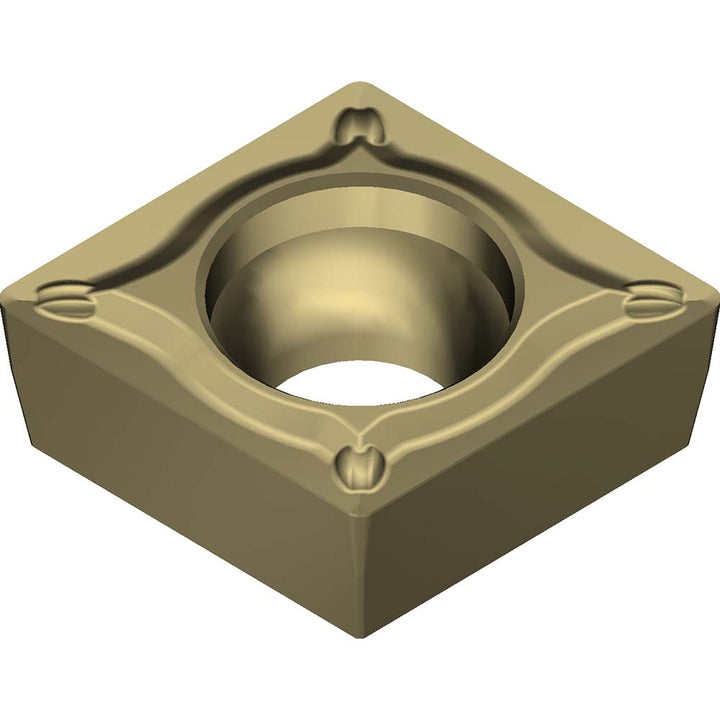

CCMT060204N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1BPC

Sumitomo

CCMT060204N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1BPC

MFR# 19W1BPCISO/ANSI# CCMT060204Cat# CCMT21.51ESU-AC8020PSeries AC8020P

$9.51List $12.20 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8020P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19W1BPC is a CCMT060204N-SU carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/4
Insert holding methodScrew-On
Insert length0.2520
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness0.0937
Iso codeCCMT060204N-SU
Iso insert codeCCMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog numberCCMT21.51ESU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
Tolerance codeM
