Sumitomo

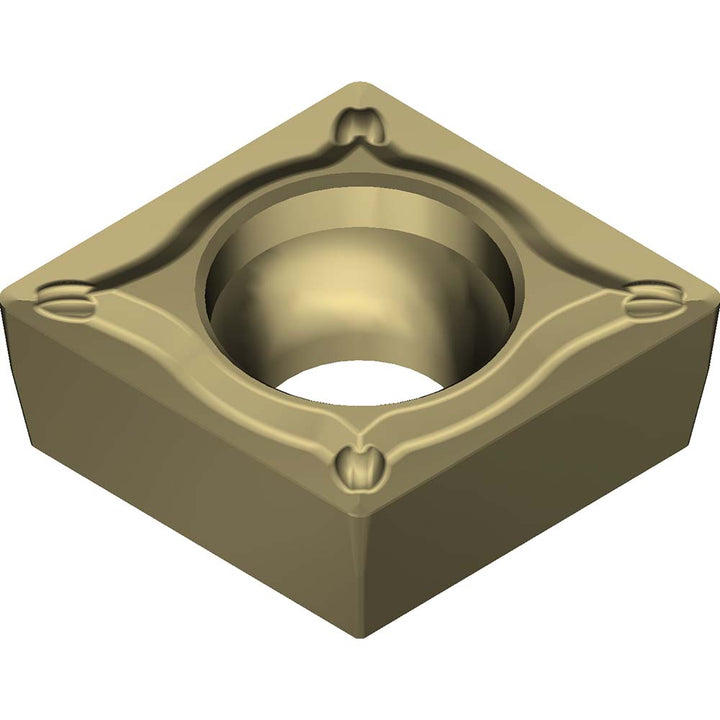

CCMT09T304N-SU Solid Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1BPE
MFR# 19W1BPEISO/ANSI# CCMT09T304N-SUCat# CCMT32.51ESU-AC8020PSeries AC8020P
$11.74List $15.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeAC8020P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19W1BPE is a CCMT09T304N-SU solid carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.
Specifications
Chip breakerESU
Clearance codeC
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew-On
Insert length0.3819
Insert materialSolid Carbide
Insert size code32.51
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT09T304N-SU
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT32.51ESU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialSteel
Tolerance codeM
