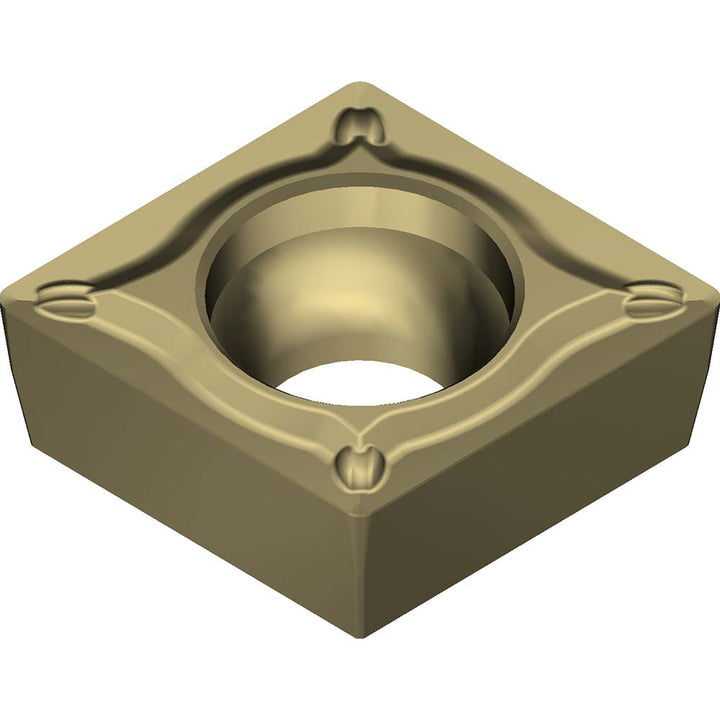

CCMT09T308N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1BPF

Sumitomo

CCMT09T308N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1BPF

MFR# 19W1BPFISO/ANSI# CCMT09T308Cat# CCMT32.52ESUAC8020PSeries AC8020P

$11.74List $15.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8020P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19W1BPF is a CCMT09T308N-SU carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in3/8
Insert holding methodScrew-On
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness0.1563
Iso codeCCMT09T308N-SU
Iso insert codeCCMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturers catalog numberCCMT32.52ESUAC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
Tolerance codeM
