Sumitomo

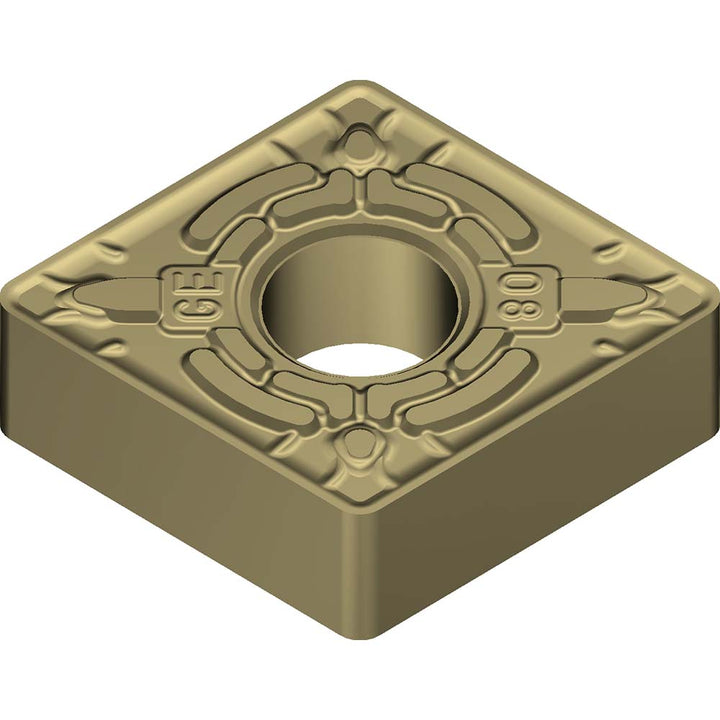

CNMG120408N-GE Solid Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1BYB
MFR# 19W1BYBISO/ANSI# CNMG120408N-GECat# CNMG432EGEAC8020PSeries AC8020P
$14.87List $18.74
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC8020P
MaterialSolid Carbide
CoatingAbsotech
Description
The Sumitomo 19W1BYB is a CNMG120408N-GE solid carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.
Specifications
Chip breakerEGE
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0315
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialSolid Carbide
Insert size code432
Insert styleCNMG
Insert thickness0.1874
Iso codeCNMG120408N-GE
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG432EGEAC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Tolerance codeM
