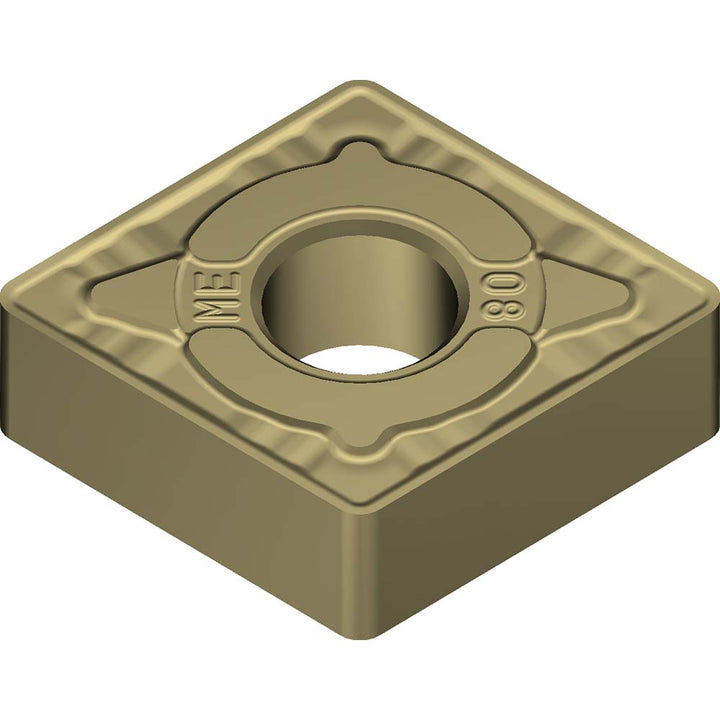

CNMG160616N-ME Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1CDV

Sumitomo

CNMG160616N-ME Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1CDV

MFR# 19W1CDVISO/ANSI# CNMG160616Cat# CNMG544EME-AC8020PSeries AC8020P

$19.94List $25.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC8020P
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 19W1CDV is a CNMG160616N-ME carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.

Specifications

Ansi insert codeCNMG544
Ansi size code544
Chip breakerEME
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAbsotech
Coating processCVD
Corner radius0.0630
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in5/8
Insert holding methodClamp; Pin
Insert length0.6339
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160616N-ME
Iso insert codeCNMG160616
Iso size code160616
Length range0.6000 - 0.6500
Manufacturers catalog numberCNMG544EME-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakeNegative
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
Tolerance codeM
