Sumitomo

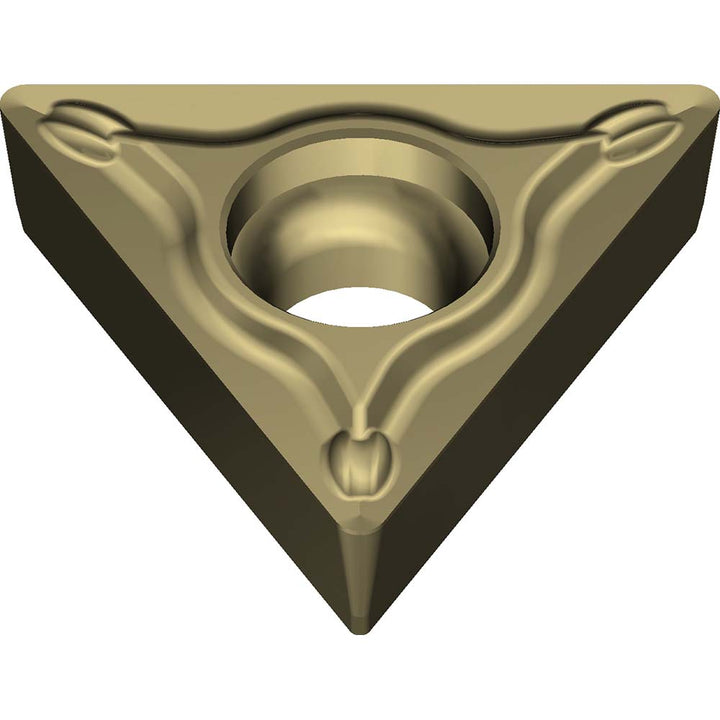

TPMT16T304N-SU Carbide Insert, Grade AC8020P, Absotech - Sumitomo 19W1WCN
MFR# 19W1WCNISO/ANSI# TPMT16T304Cat# TPMT32.51ESU-AC8020PSeries AC8020P
$13.11List $16.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAC8020P
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19W1WCN is a TPMT16T304N-SU carbide indexable insert, grade AC8020P, Absotech coated. Suited for steel.
Specifications
Ansi insert codeTPMT32.51
Ansi size code32.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishAbsotech
Coating processCVD
Corner radius0.0157
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Inscribed circle in3/8
Insert holding methodScrew-On
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.51
Insert styleTPMT
Insert thickness0.1563
Iso codeTPMT16T304N-SU
Iso insert codeTPMT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog numberTPMT32.51ESU-AC8020P
Manufacturer gradeAC8020P
Material gradeP20
Primary workpiece materialSteel
RakePositive
Relief angle11
Secondary workpiece materialSteel
Side clearancePositive
Tolerance codeM
