Sumitomo

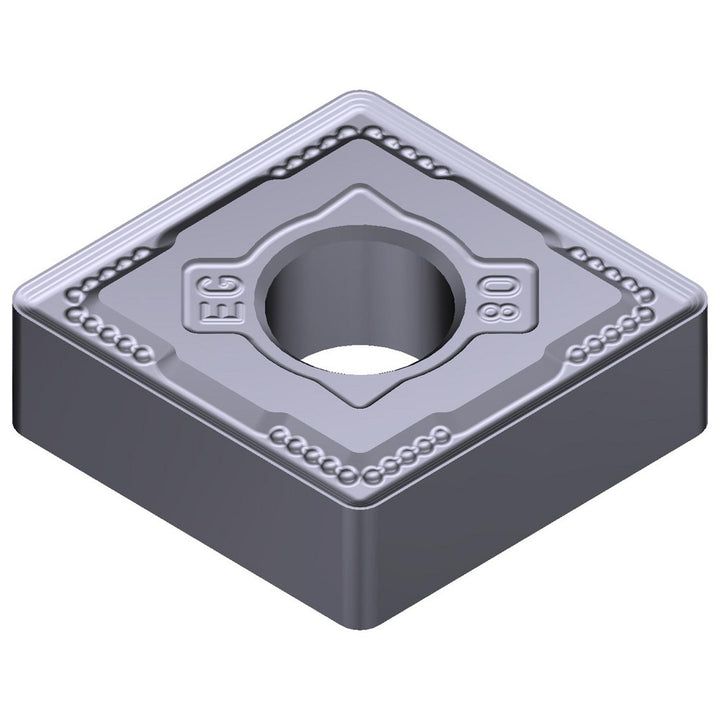

CNMG120408N-EG Carbide Insert, Grade AC5005S, Absotech - Sumitomo 19W2CFY
MFR# 19W2CFYISO/ANSI# CNMG120408N-EGCat# CNMG432EEG-AC5005SSeries AC5005S
$11.96List $15.34
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeAC5005S
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 19W2CFY is a CNMG120408N-EG carbide indexable insert, grade AC5005S, Absotech coated.
Specifications
Chip breakerEEG
Clearance codeN
Coating finishAbsotech
Coating processPVD
Corner radius0.0315
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert size code432
Insert styleCNMG
Insert thickness0.1874
Iso codeCNMG120408N-EG
Length range0.5000 - 0.6000
Manufacturers catalog numberCNMG432EEG-AC5005S
Manufacturer gradeAC5005S
RakeNegative
Relief angle0
Tolerance codeM
