Sumitomo

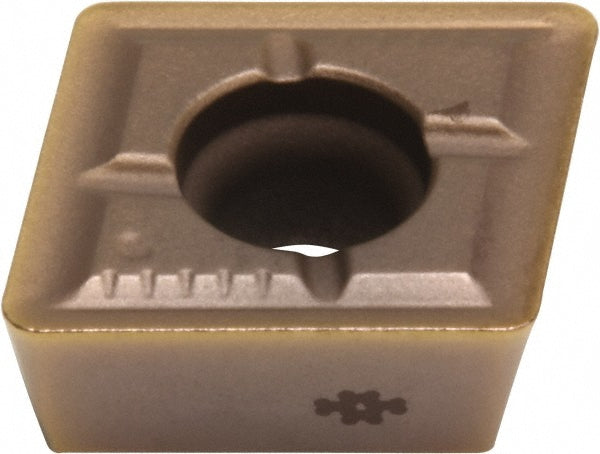

0.2756" IC Solid Carbide Insert, Grade ACP300, Coated - Sumitomo 1AHB018
MFR# 1AHB018
$11.61List $14.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeACP300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 1AHB018 is a solid carbide indexable insert, grade ACP300, Coated coated. Suited for universal.
Specifications
ChipbreakerL
Coating finishCoated
Coating processPVD
Corner radius0.0236
Cutting directionRight Hand
Inscribed circle0.2756
Insert materialSolid Carbide
Insert size073506
Insert size code07
Insert styleWDXT
Manufacturer gradeACP300
Primary workpiece materialUniversal
ShapeParallelogram
Thickness0.1378
Width0.2953
