Sumitomo

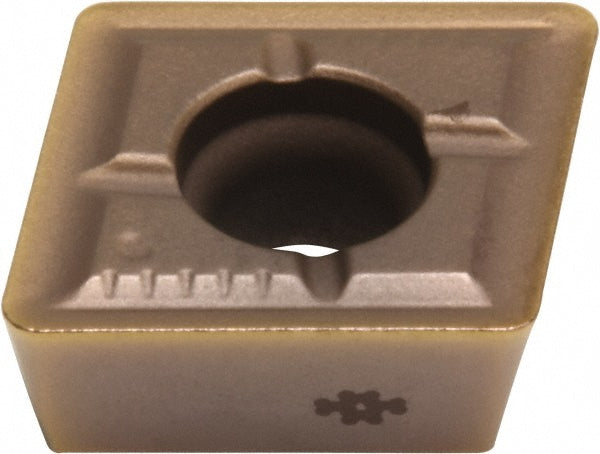

0.1969" IC Carbide Insert, Grade ACK300, TiAlN - Sumitomo 1AHD064
MFR# 1AHD064
$10.94List $14.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeACK300
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 1AHD064 is a carbide indexable insert, grade ACK300, TiAlN coated. Suited for universal.
Specifications
ChipbreakerG
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Inscribed circle0.1969
Insert handRight Hand
Insert materialCarbide
Insert size052504
Insert size code05
Insert styleWDXT
Manufacturer gradeACK300
Primary workpiece materialUniversal
ShapeParallelogram
Thickness0.0984
Width0.1969
