Sumitomo

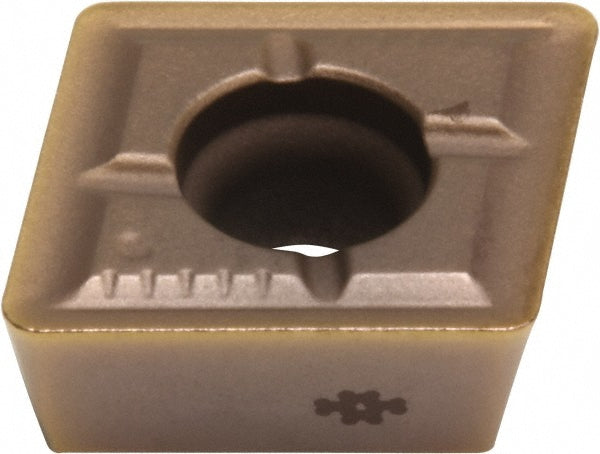

0.4882" IC Solid Carbide Insert, Grade ACK300, Coated - Sumitomo 1AHD067
MFR# 1AHD067
$17.26List $21.76
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeACK300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 1AHD067 is a solid carbide indexable insert, grade ACK300, Coated coated. Suited for universal.
Specifications
ChipbreakerG
Coating finishCoated
Coating processPVD
Corner radius0.0472
Cutting directionRight Hand
Inscribed circle0.4882
Insert materialSolid Carbide
Insert size125012
Insert size code12
Insert styleWDXT
Manufacturer gradeACK300
Primary workpiece materialUniversal
ShapeParallelogram
Thickness0.1969
Width0.4882
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
