Sumitomo

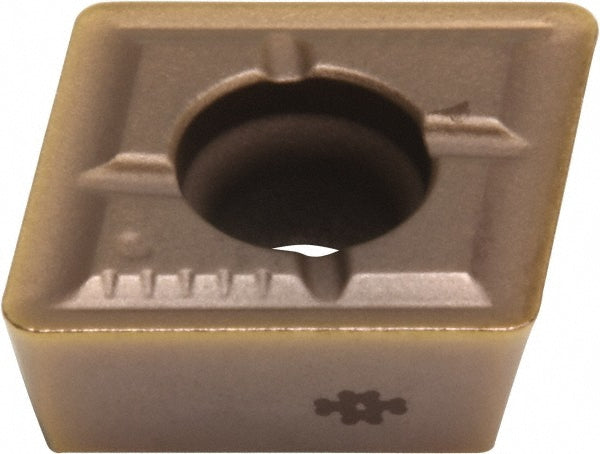

0.4724" IC Carbide Insert, Grade ACK300, TiAlN - Sumitomo 1AHD069
MFR# 1AHD069
$15.02List $19.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeACK300
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 1AHD069 is a carbide indexable insert, grade ACK300, TiAlN coated. Suited for universal.
Specifications
ChipbreakerH
Coating finishTiAlN
Coating processPVD
Corner radius0.0472
Inscribed circle0.4724
Insert handRight Hand
Insert materialCarbide
Insert size125012
Insert size code12
Insert styleWDXT
Manufacturer gradeACK300
Primary workpiece materialUniversal
ShapeParallelogram
Thickness0.1969
Width0.4882
