Sumitomo

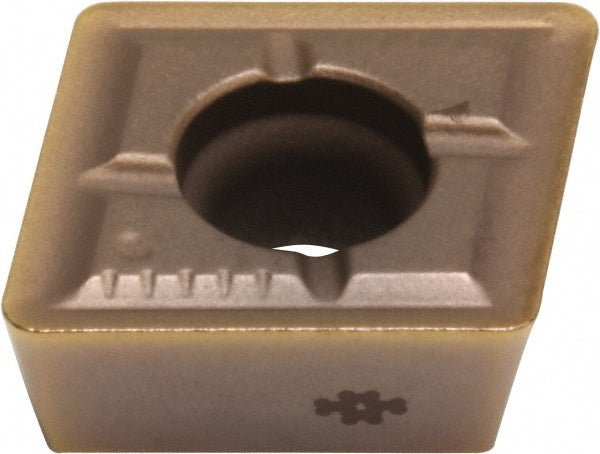

0.5906" IC Solid Carbide Insert, Grade ACK300, Coated - Sumitomo 1AHD070
MFR# 1AHD070
$18.85List $23.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeACK300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 1AHD070 is a solid carbide indexable insert, grade ACK300, Coated coated. Suited for universal.
Specifications
ChipbreakerG
Coating finishCoated
Coating processPVD
Corner radius0.0472
Cutting directionRight Hand
Inscribed circle0.5906
Insert materialSolid Carbide
Insert size156012
Insert size code15
Insert styleWDXT
Manufacturer gradeACK300
Primary workpiece materialUniversal
ShapeParallelogram
Thickness0.2362
Width0.5984
