Sumitomo

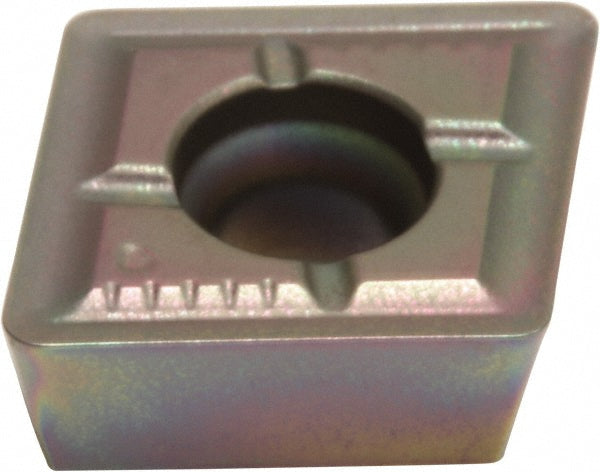

0.3543" IC Solid Carbide Insert, Grade DL1500, Coated - Sumitomo 1AJV022
MFR# 1AJV022
$19.61List $25.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeDL1500
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 1AJV022 is a solid carbide indexable insert, grade DL1500, Coated coated. Suited for universal.
Specifications
ChipbreakerG
Coating finishCoated
Corner radius0.0315
Cutting directionRight Hand
Inscribed circle0.3543
Insert materialSolid Carbide
Insert size094008
Insert size code09
Insert styleWDXT
Manufacturer gradeDL1500
Primary workpiece materialUniversal
ShapeParallelogram
Thickness0.1575
Width0.3780
