Sumitomo
Solid Carbide Insert, Grade AC225, Coated - Sumitomo 1G25010
MFR# 1G25010Series WCF
$14.25List $18.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeAC225
MaterialSolid Carbide
CoatingCoated
Description

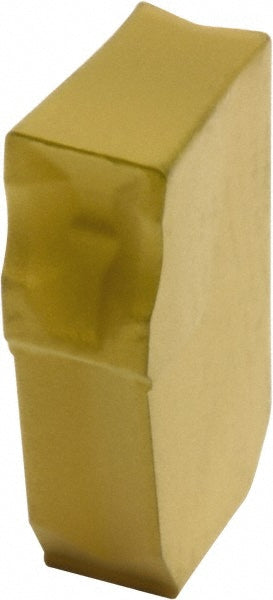

The Sumitomo 1G25010 is a solid carbide indexable insert, grade AC225, Coated coated. Suited for cast iron, stainless steel, steel.
Specifications
ChipbreakerA
Coating finishCoated
Coating processCVD
Corner radius0.0078
Cutting tool applicationChamfering; Cut-off; Grooving
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodSelf Grip
Insert materialSolid Carbide
Insert size code3
Insert styleWCF
Lead angle0
Lead angle directionNeutral
Manufacturer gradeAC225
Material gradeC4
Multi use toolYes
Primary workpiece materialCast Iron; Stainless Steel; Steel
Single or double endSingle
