Sumitomo

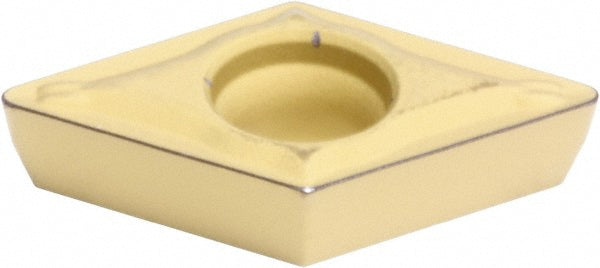

DPMT070204N-SU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 1HRJW04
MFR# 1HRJW04ISO/ANSI# DPMT070204N-SUSeries DP
$16.55List $20.86
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 1HRJW04 is a DPMT070204N-SU solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeDPMT21.51ESU
Chip breakerESU
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Hole diameter0.1100
Included angle55.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3031
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleDPMT
Insert thickness in3/32
Iso codeDPMT070204N-SU
Manufacturer gradeAC820P
RakePositive
Rake angle8
Relief angle11
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
