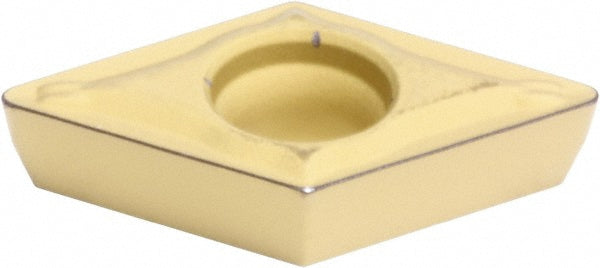

DPMT11T304N-SU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 1HRJW09

Sumitomo

DPMT11T304N-SU Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 1HRJW09

MFR# 1HRJW09ISO/ANSI# DPMT11T304Series DP

$17.51List $22.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC820P
MaterialCarbide
CoatingAl2O3

Description

The Sumitomo 1HRJW09 is a DPMT11T304N-SU carbide indexable insert, grade AC820P, Al2O3 coated.

Specifications

Ansi insert codeDPMT32.51
Ansi size code32.51
Chip breakerESU
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDPMT
Insert thickness in5/32
Iso codeDPMT11T304N-SU
Iso insert codeDPMT11T304
Iso size code11T304
Manufacturer gradeAC820P
RakePositive
Rake angle8
Relief angle11
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
