Sumitomo

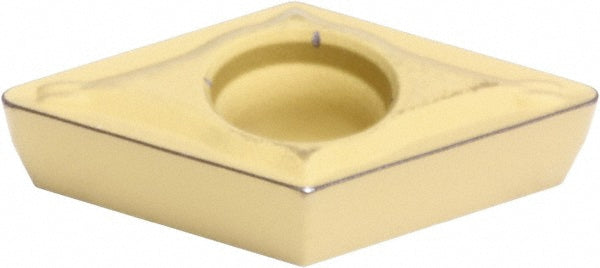

DPMT11T308N-SU Solid Carbide Insert, Grade AC820P, Al2O3 - Sumitomo 1HRJW0E
MFR# 1HRJW0EISO/ANSI# DPMT11T308N-SUSeries DP
$17.51List $22.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC820P
MaterialSolid Carbide
CoatingAl2O3
Description
The Sumitomo 1HRJW0E is a DPMT11T308N-SU solid carbide indexable insert, grade AC820P, Al2O3 coated.
Specifications
Ansi codeDPMT32.52ESU
Chip breakerESU
Clearance codeP
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleDPMT
Insert thickness in5/32
Iso codeDPMT11T308N-SU
Manufacturer gradeAC820P
RakePositive
Rake angle8
Relief angle11
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeM
