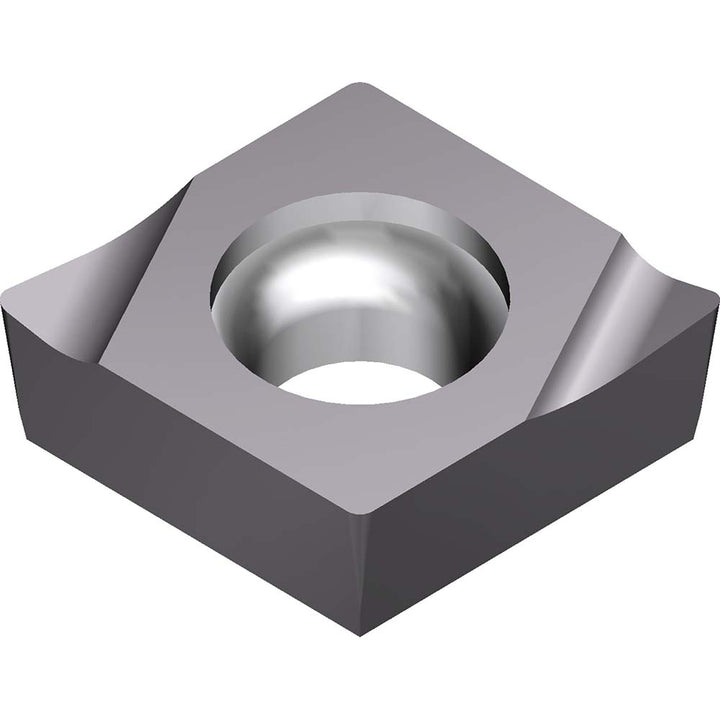

CCET09T302L-FY Carbide Insert, Grade AC1030U, Absotech - Sumitomo 1LR4540

Sumitomo

CCET09T302L-FY Carbide Insert, Grade AC1030U, Absotech - Sumitomo 1LR4540

MFR# 1LR4540ISO/ANSI# CCET09T302Cat# CCET32.50.5LFY-AC1030USeries AC1030U

$12.59List $16.14 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC1030U
MaterialCarbide
CoatingAbsotech

Description

The Sumitomo 1LR4540 is a CCET09T302L-FY carbide indexable insert, grade AC1030U, Absotech coated.

Specifications

Ansi insert codeCCET32.50.5
Ansi size code32.50.5
Chip breakerLFY
Chip breaker operationFinishing
Clearance codeC
Coating finishAbsotech
Coating processPVD
Corner radius0.0079
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter4.4000
Included angle80
Inscribed circle in3/8
Insert holding methodScrew-On
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.50.5
Insert styleCCET
Insert thickness0.1563
Iso codeCCET09T302L-FY
Iso insert codeCCET09T302
Iso size code09T302
Length range0.3000 - 0.4000
Manufacturers catalog numberCCET32.50.5LFY-AC1030U
Manufacturer gradeAC1030U
Material gradeM10; P10
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeE
