Sumitomo

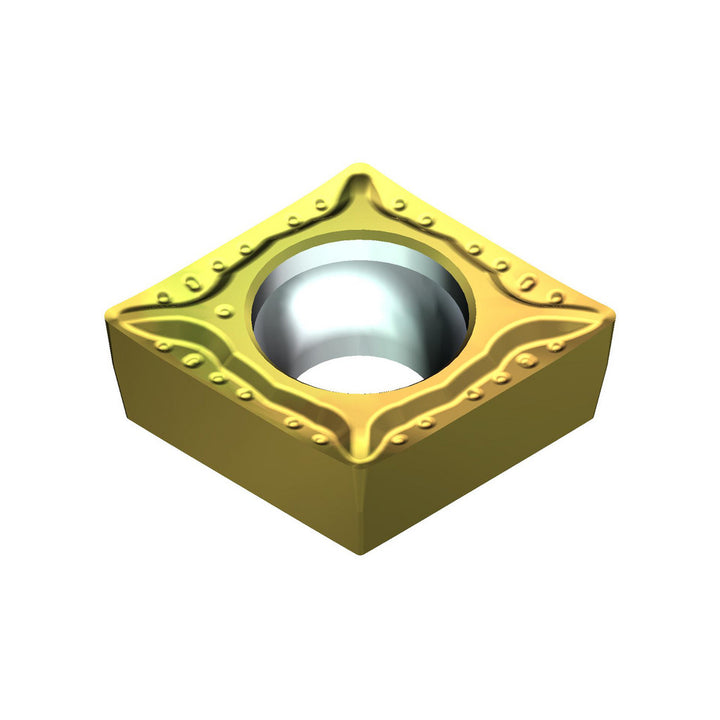

CCGT09T301MN-SI Cermet Insert, Grade T1500Z, Coated - Sumitomo 1N4A005
MFR# 1N4A005ISO/ANSI# CCGT09T301MN-SISeries CC
$12.03List $15.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeT1500Z
MaterialCermet
CoatingCoated
Description
The Sumitomo 1N4A005 is a CCGT09T301MN-SI cermet indexable insert, grade T1500Z, Coated coated. Suited for steel.
Specifications
Chip breakerMESI
Clearance codeC
Coating finishCoated
Coating processPVD
Corner radius0.0039
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1398
Insert materialCermet
Insert shapeDiamond
Insert size code32.5
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T301MN-SI
Manufacturer gradeT1500Z
Primary workpiece materialSteel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
