Sumitomo

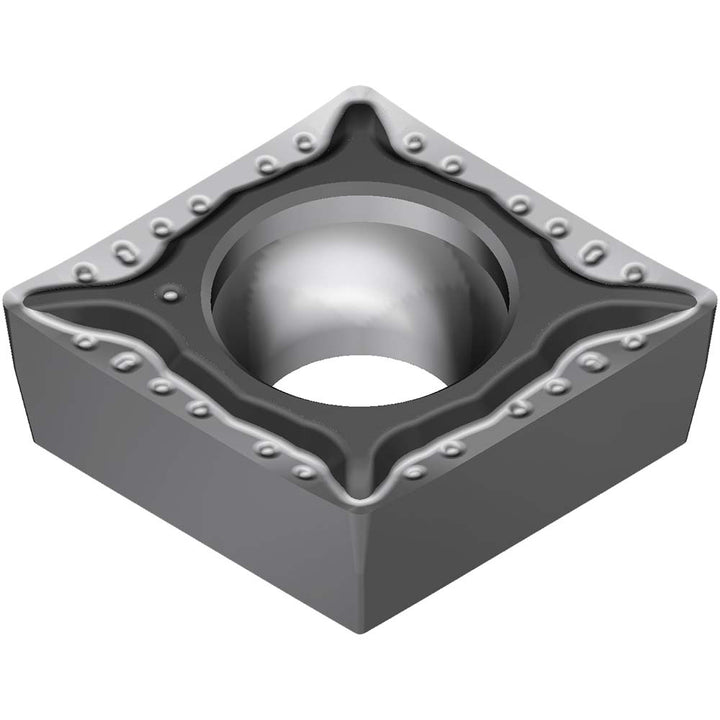

CCGT09T301MN-SI Carbide Insert, Grade AC6030M, Coated - Sumitomo 1N6C005
MFR# 1N6C005ISO/ANSI# CCGT09T301MN-SISeries CC
$12.61List $16.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6030M
MaterialCarbide
CoatingCoated
Description
The Sumitomo 1N6C005 is a CCGT09T301MN-SI carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Chip breakerMESI
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius0.0039
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1398
Insert materialCarbide
Insert shapeDiamond
Insert size code32.5
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T301MN-SI
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
