Sumitomo

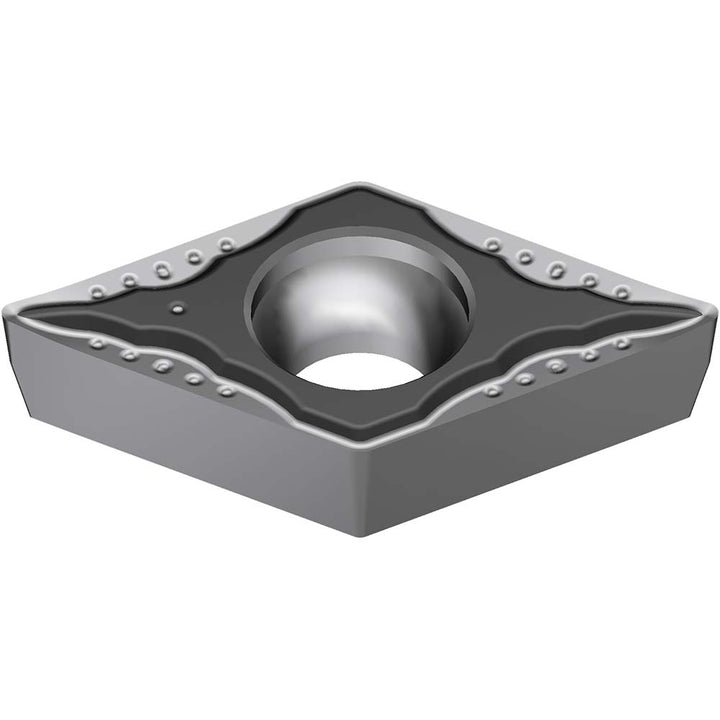

DCGT11T304MN-S Carbide Insert, Grade AC6030M, Coated - Sumitomo 1N6C013
MFR# 1N6C013ISO/ANSI# DCGT11T304MN-SSeries DC
$16.11List $20.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6030M
MaterialCarbide
CoatingCoated
Description
The Sumitomo 1N6C013 is a DCGT11T304MN-S carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Chip breakerMESI
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304MN-S
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
