Sumitomo

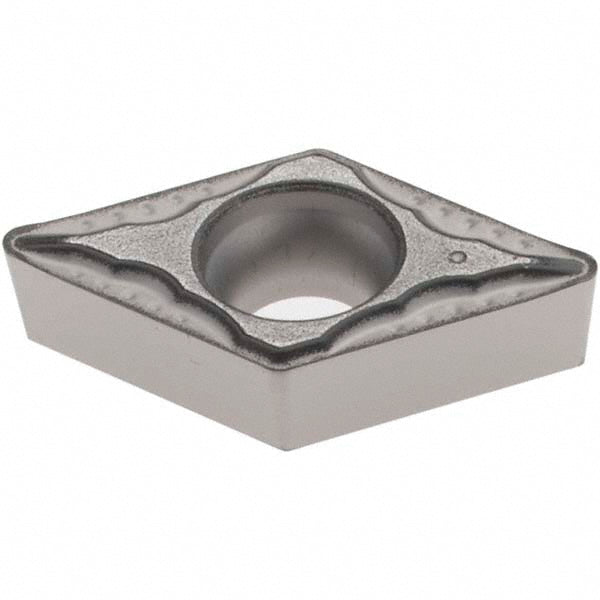

DCGT11T308MN-S Solid Carbide Insert, Grade AC6030M, Coated - Sumitomo 1N6C014
MFR# 1N6C014ISO/ANSI# DCGT11T308MN-SSeries DC
$18.54List $23.36
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC6030M
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 1N6C014 is a DCGT11T308MN-S solid carbide indexable insert, grade AC6030M, Coated coated. Suited for stainless steel.
Specifications
Ansi codeDCGT32.52MESI
Chip breakerMESI
Clearance codeC
Coating finishCoated
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.52
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T308MN-S
Manufacturer gradeAC6030M
Primary workpiece materialStainless Steel
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
