Sumitomo

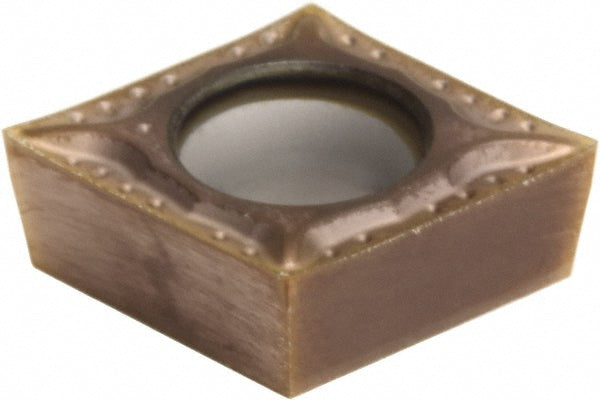

CCGT09T304MN-SI Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 1NHM007
MFR# 1NHM007ISO/ANSI# CCGT09T304MN-SISeries CC
$12.83List $16.17
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 1NHM007 is a CCGT09T304MN-SI solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeCCGT32.51MESI
Chip breakerMESI
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1372
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1398
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T304MN-SI
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeG
