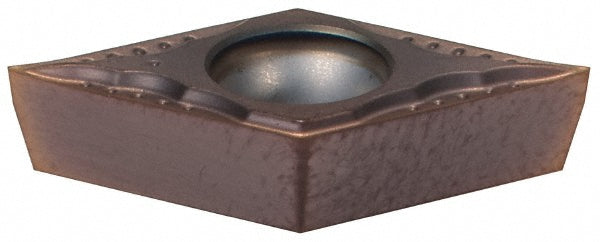

DCGT11T302MN-S Carbide Insert, Grade AC530U, TiAlN - Sumitomo 1NHM012

Sumitomo

DCGT11T302MN-S Carbide Insert, Grade AC530U, TiAlN - Sumitomo 1NHM012

MFR# 1NHM012ISO/ANSI# DCGT11T302Series DC

$16.11List $20.67 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeAC530U
MaterialCarbide
CoatingTiAlN

Description

The Sumitomo 1NHM012 is a DCGT11T302MN-S carbide indexable insert, grade AC530U, TiAlN coated.

Specifications

Ansi insert codeDCGT32.50.5
Ansi size code32.50.5
Chip breakerMESI
Chip breaker operationLight Machining; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.50.5
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T302MN-S
Iso insert codeDCGT11T302
Iso size code11T302
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
